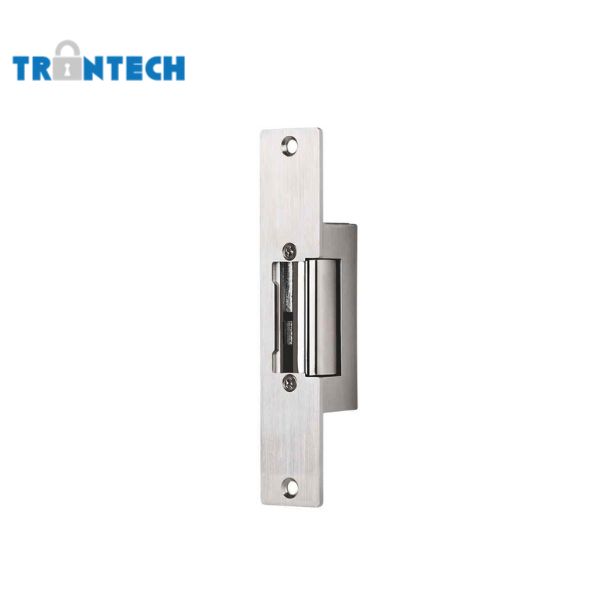

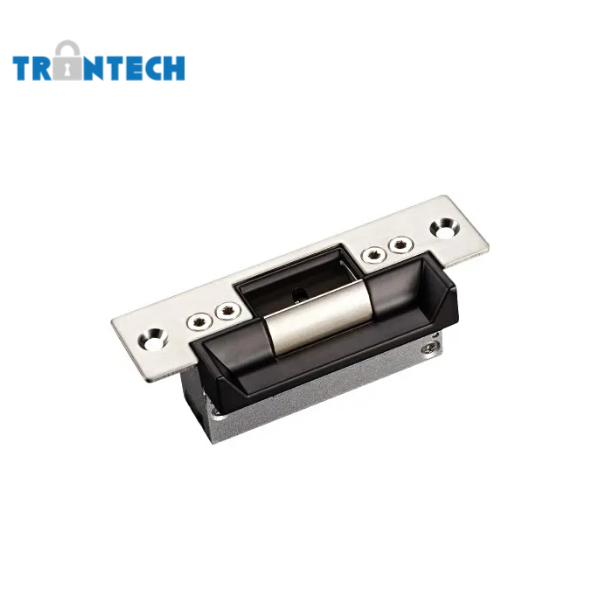

Standard Heavy Duty Electric Strike ANSI Lock


This lock is suitable for many different doors. The operating principle of an electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door. Features

  • Holding 1000kg
  • Special design, easy to adjust the distance of the lock
  • Tested up to 100,000 cycles
  • High-Temperature painted durable and elegant design
Login for pricing
SKU: 916828 Category:
Product Parameter Description
 Lock Size 136: 123Lx43Wx42H(mm)    136-S: 123Lx43Wx42H(mm)   137-S:   174Lx44Wx27H(mm)
 Strike Structure Stainless Steel
 Holding Force 1000kg
 Voltage DC12V (Need Order DC24V)
 Current 12V/320mA;24V/160mA
 Signal Output Lock Status OutputNO/NC/COM
 Panel selection Stainless steel, high strength aluminum alloy
 Suitable For Wooden Door,Metal Door
 Surface Temperature Within +20℃
 Suitable Temperature -10~+55℃(14-131F)
 Operating Humidity 0~90%(non-condensing)
 Face plate Housing Painted Steel
 Lock tongue Surface by coating nickel
 Function Built-out MOV
 Weight 136: 0.34kg   136-S: 0.34kg   137: 0.5kg
