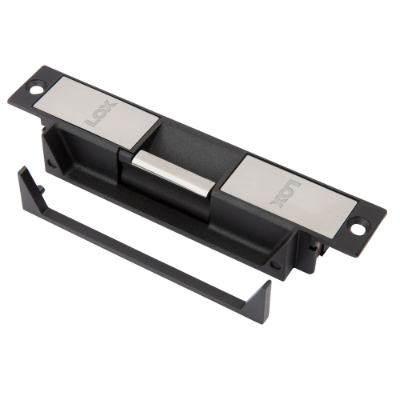

Lox Monitored High Security Electric Strike

ES20M

Lox Monitored High Security Electric Strike (ES20M) is the monitored version of the ES20M strike and has a 10mm strike lip as standard. This prevents potential personal injury and damage to clothing as compared to electric strikes with a 15mm strike lip. This lock is easily interchangeable from fail-secure to fail-safe with the use of a small screwdriver.

Features

  • Simple power to lock/power to release interchange
  • No loose pins and springs
  • 10mm strike lip pre-drilled for extension lips
  • Multi-voltage: 10-30VDC
  • Fire rated CE and RCM approvals
  • Superior holding strength
  • Built-in hall effect sensor for monitoring the lock/ unlock status of the locking device (LSS – lock status sensor)
  • Built-in reed switch contact for monitoring the open/closed status of the door (DSS – door status sensor)
Login for pricing
SKU: 703382 Category:

ES20M monitored version of the es20
HOLDING STRENGTH up to 1000kg, tested to 1.5 million cycles
VOLTAGE/CURRENT multi voltAge 10—30vdc, 250mA At 12vdc, 125mA At 24vdc
APPROVALS up to 4 hour fire rAted to A.s stAndArds, ce & c-tick
LSS MONITORING stAtus sensor of the internAl locking mechAnism
DSS MONITORING door lAtch sensor, door lAtch engAged within strike keeper
ATS MONITORING door strike removed or repositioned sensor
ENVIRONMENTAL operAtionAl temperAture rAnge – 20 deg. c to 60 deg. c.

Weight 3 kg
Dimensions 18 × 5 × 3 cm
Brand

FSH

Datasheet

Download

ES20M_Specifications
