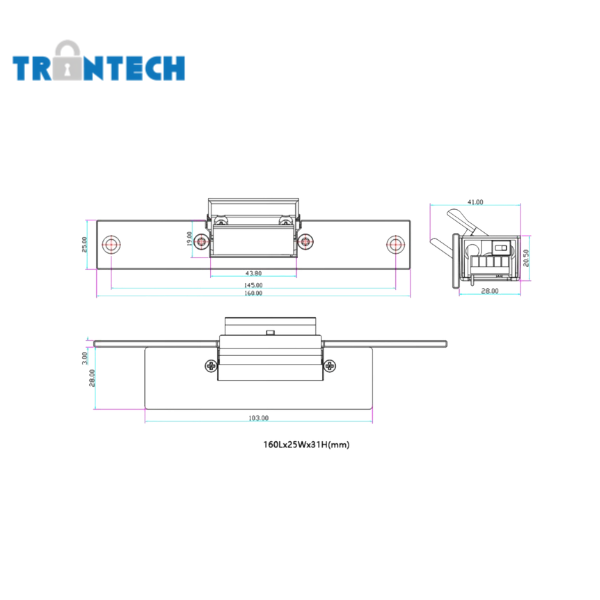

| Lock Size | 160Lx25Wx31H (mm) |
| Strike Structure | Stainless Steel |
| Holding Strength | 500kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 200mA (YS-131NO); 200mA (YS-131NC) |
| Feature | Fail Secure (YS-131NO); Fail-Safe (YS-131NC) |
| Suitable For | Wooden Door, Metal Door, PVC Door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃ (14-131F) |
| Operating Humidity | 0~90% (non-condensing) |
| Faceplate Housing | Painted steel |
| Bolt Housing | Stainless steel, drawn like the polishing silk |
| Function | Built-out MOV |
| Optional Accessories | YS-307 |
| Weight | 0.36kg |
Narrow-Type Electric Strike (Electric Lock)
TES-131NOS
Features
- Fail-secure mode: a current to the strike will cause it to unlock.
- Fail-safe mode: a current to the strike will cause it to lock.
