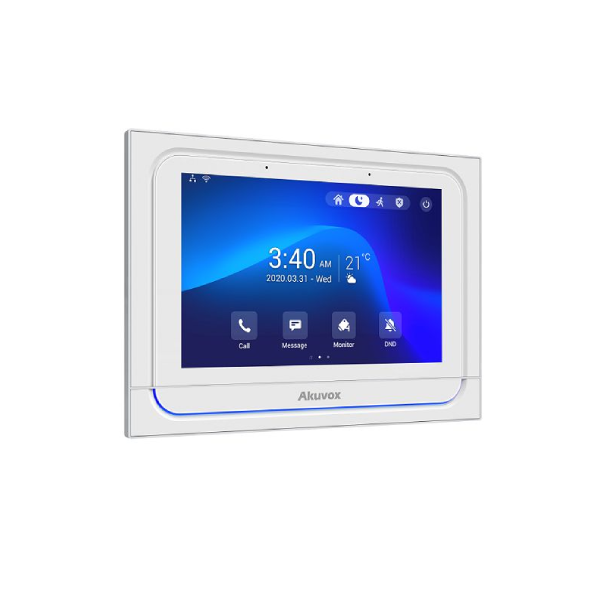

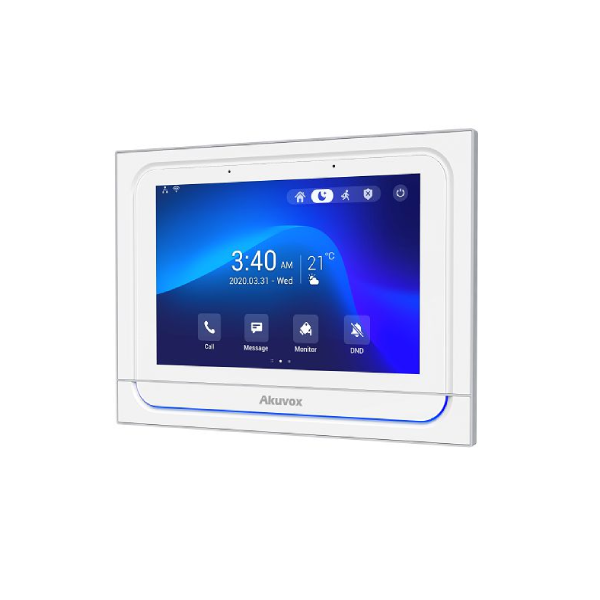

Akuvox X933W White 7" Android Indoor Monitor

X933W (White)

The first product of Akuvox’s X series indoor monitor, Akuvox X933 strikes a perfect balance between fashion and technology.

Features

  • Excellent performance with Android 9.0 system
  • 7-inch capacitive touch screen with energy saving mode
  • Ultimate visual experience with 1280 x 800 resolution
  • Powered by PoE or external source
  • Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
  • Bluetooth: BLE 4.1
  • 8 channel inputs and 2 embedded relays
  • Voice Activation Detection
  • Tamper resistant design
  • Video Streaming formats: H.263 & H.264
  • Installation: Wall-mounted
Login for pricing
SKU: 993399 Category:

General
  • Case: Plastic
  • RAM/ROM: 2GB/8GB
  • Screen: 7″ IPS LCD Capacitive
  • RS485 port: Yes
  • Relay outputs: 2
  • Doorbell entrance: 1
  • Y/W: 8
  • Microphone: Dual microphone, -26dB
  • Speakers: Dual Speakers, 4Ω/3W
  • Network port: 1xRJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC power supply (if not PoE powered) not included
  • Anti-vandal design: Yes
  • Installation: Mural or table. Requires an accessory.
  • Dimensions: 205x148x22mm
  • Operating humidity: 10~90%
  • Operating temperature: -10°C ~ +45°C
Touch screen
  • Size: 7″ (Diagonal)
  • Ratio: 16:10
  • Resolution: 1280×800
  • Contrast: 900:1
  • Brightness: 350 cd/m2
  • Viewing angle: 89° Left, 89° Right, 89° High, 89° Low
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711A, G.711μ, G.729
  • Broadband audio code: G.722
  • DTMF: In-Band, Out-of-Band DTMF (RFC2833), SIP Info
  • Canceling Echo
  • Detecting speech activation
  • Comfort noise generator
  • Automatic gain
Video
  • Streaming Format: H.263 & H.264
Network and protocol
  • Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment and maintenance
  • Self-sufficiency
  • Web Management Portal
  • Depositing packages on the web Backup / restore configuration
  • Exporting the input log
  • Export/import access table
  • Firmware update
  • System logs (including door access logs)
Voice commands
  • Voice control in English only
  • Recognition accuracy: 95%
  • Protection of privacy

Datasheet

Download

Akuvox_X933W_Datasheet_Trantech
