| Operating Temperature Range | −5 to 35°C |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 volts p-p(TTL) |
| Support Video Format DTV/HDTV | 480i/576i/480P/576P/720P/1080i/1080P 3D video |
| Video Output | HDMI ,HDCP |
| Support Audio Format | DTS-HD Master Audio Dolby True-HD etc. |
| Transmission Distance | 1080P 8-bit 50m (Maximum) over single CAT5E/6 /24AWG/Solid |
| Power consumption | 5 watts (Maximum) |
| Dimension (LxWxH) | 83x48x25mm |
| Net Weight | 250g (Pair) |

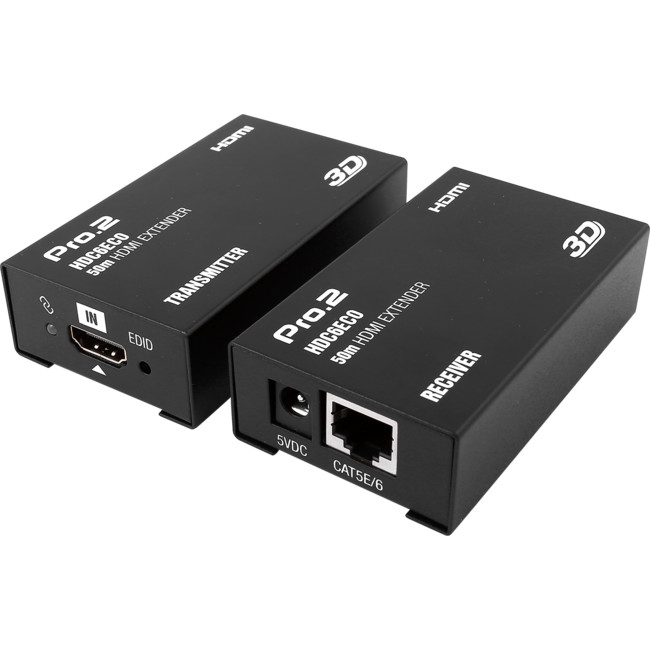

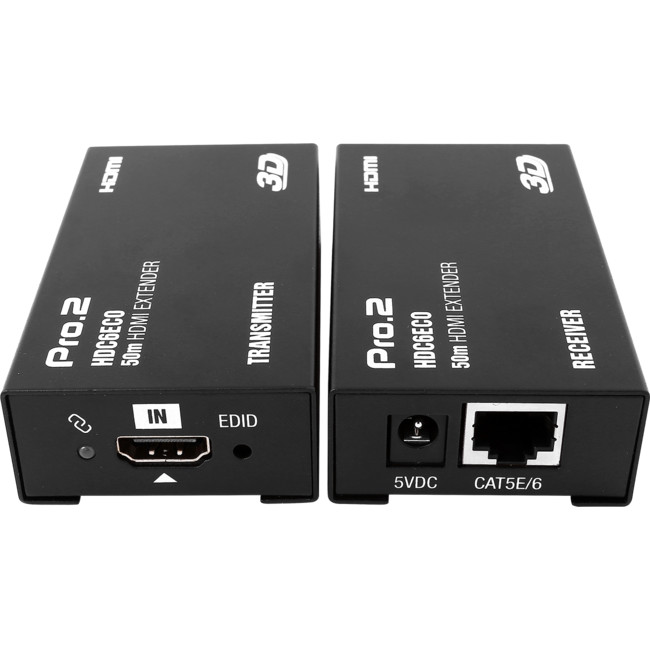

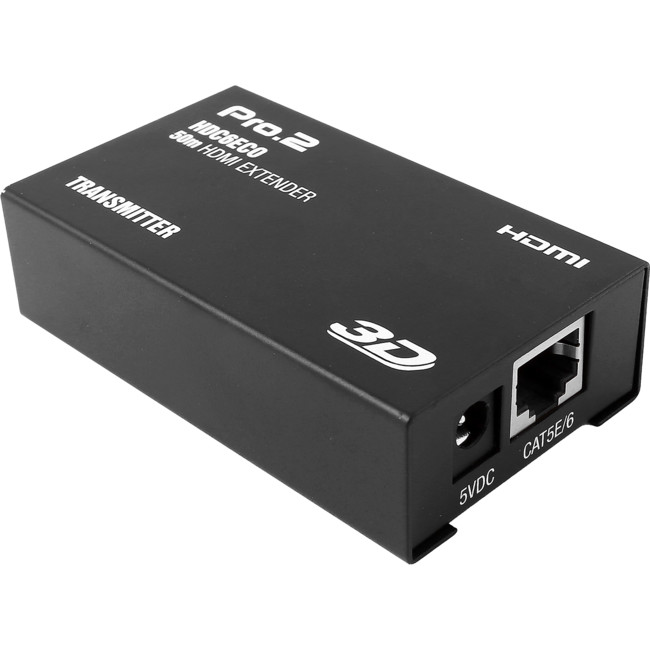

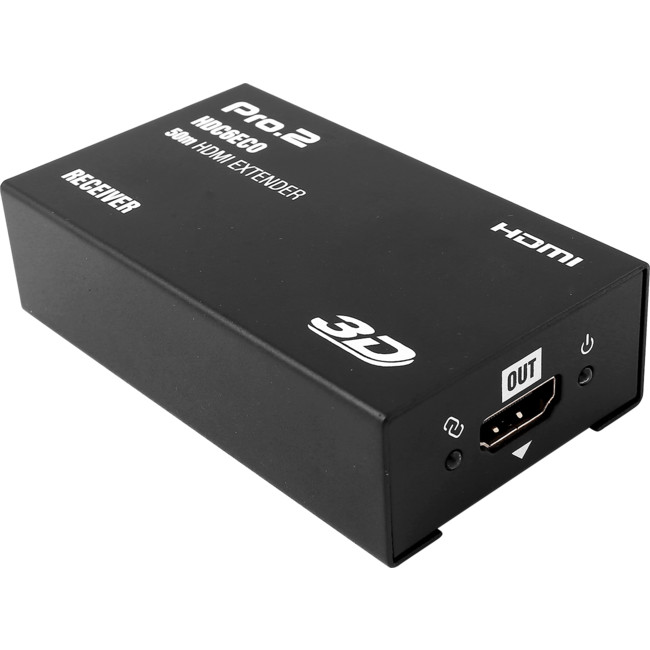

HDMI OVER SINGLE CAT6 EXTENDER 50M
HDC6ECO
Features:
- Each set includes one transmitter and one receiver
- Easy installation, no need to do extra setting
- Transmit HDMI signal over 50m via single Cat5e/6 without signal loss
- The CAT5e/6 follows standard of IEEE-568B
- Support high definition resolution up to Full HD 1080p
- Support Dolby True-HD, DTS-HD Master audio
- EDID reading and saving from display
- Bandwidth can be up to 6.75 Gbps
- Deep colour up to 36 bit
- 3D compatible
- 2x DC 5V 1A power supply (included)
- 4K/2K incompatible
