Dimensions
148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)
Weight
432 g (15.24 oz)
Enclosure Characteristics
SGCC Steel
Total Non-Blocking Throughput
8 Gbps
Switching Capacity
16 Gbps
Forwarding Rate
11.9 Mpps
Max. Power Consumption
12W (Excluding PoE Output)
Max. PoE Wattage per Port
15.4W
Power Method
48VDC, Max. 2A
Supported Voltage Range
57VDC to 44VDC
Power Supply
External AC/DC Adapter: 100-240VAC, 50/60 Hz; 48VDC, 1.25A
LEDs
PoE (Port 8), Speed/Link/Activity (All Ports)
Sound Level*
0.6 dBr (Fanless)
Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces
(4) Ports 5, 6, 7, 8; IEEE802.3af
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
5 to 95% Noncondensing
Shock and Vibration
ETSI300-019-1.4 Standard
Certifications
CE, FCC, IC

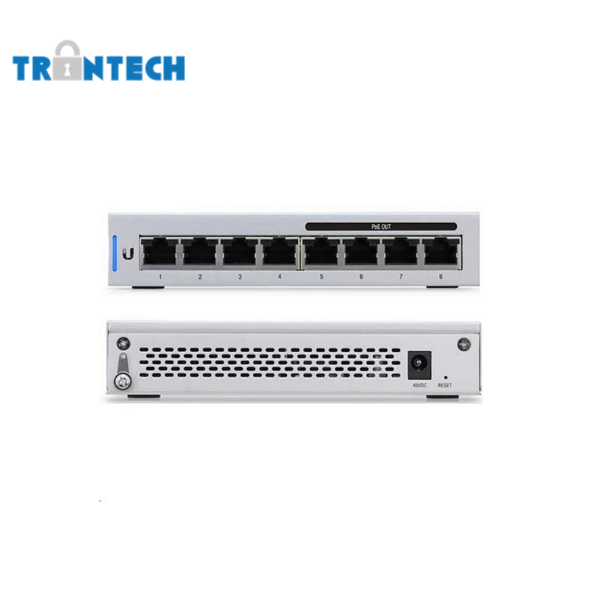

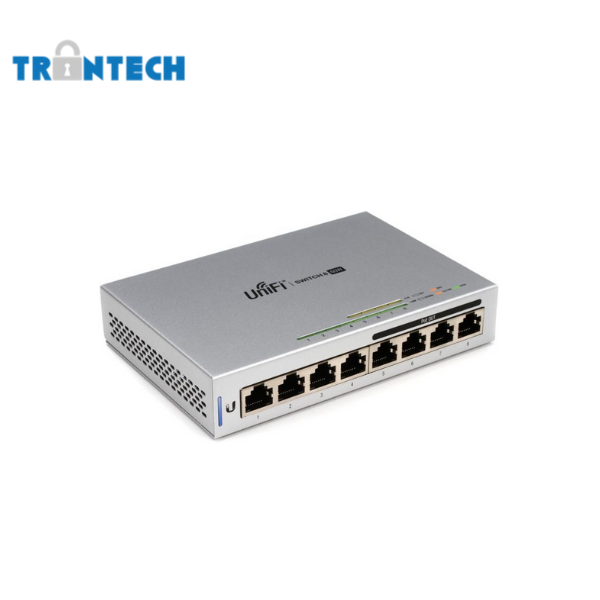

Ubiquiti 8 Port Switch
US-8-60W
The Switch 8 60W (US 8 60W) is a fully managed switch with (8) GbE RJ45 ports including (4) GbE, 802.3at PoE+ ports. The US 8 60W is powered with the included 60W, AC/DC power adapter, and offers a 8 Gbps total, non-blocking line rate. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
- 8x Gigabit RJ45 Ports
- 4x Auto-Sensing IEEE 802.3af PoE Ports
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
- This unit must be powered with the included power supply and cannot be powered over 802.3at
- 12 Months Limited Warranty
| Brand | ubiquiti |
|---|
