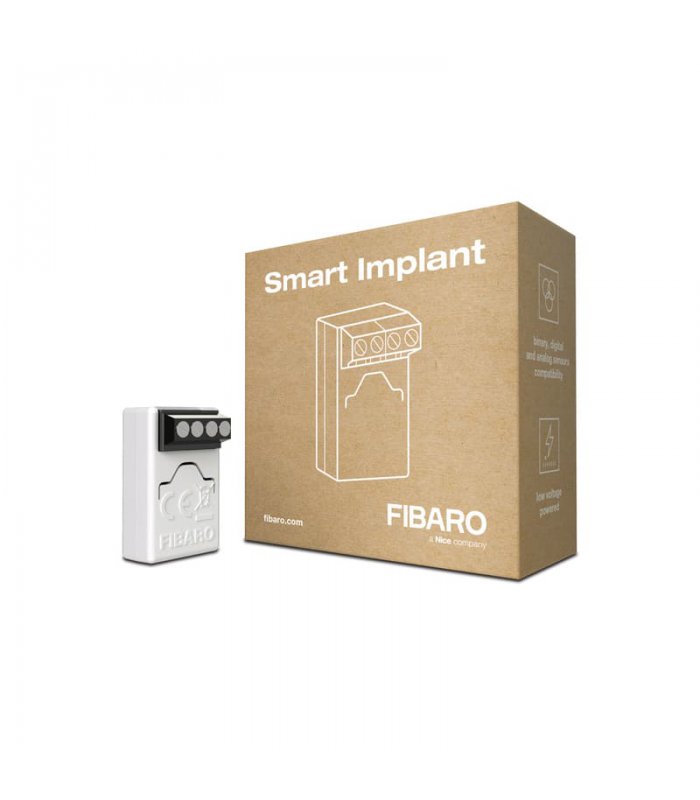

FIBARO Smart Implant

FGBS-222

FIBARO Smart Implant allows to enhance the functionality of wired sensors and other devices by adding Z-Wave network communication. You can connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to the Z-Wave controller. It can also control devices by opening/closing output contacts independently of the inputs.

Features

  • Compatible with any certified Z-Wave or Z-Wave Plus controller,
  • Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption,
  • Works as a Z-Wave signal repeater,
  • Allows for connecting sensors:
    • 6 DS18B20 sensors,
    • 1 DHT sensor,
    • 2 2-wire analog sensor,
    • 2 3-wire analog sensor,
    • 2 binary sensors,
  • Built-in temperature sensor.
Login for pricing
SKU: 701475 Category:

Power supply 9-30V DC ±10%
Inputs 2 0-10V or digital inputs
1 serial 1-wire input
Outputs 2 potential-free outputs
Supported digital sensors 6 DS18B20 or 1 DHT22
Maximum current on outputs 150mA
Maximum voltage on outputs 30V DC / 20V AC ±5%
Built-in temperature sensor measurement range -55°C–126°C
(-67°F–259°F)
Operating temperature 0–40°C (32–104°F)
Radio protocol Z-Wave (500 series chip)
Radio frequency 868.4 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4 or 919.8 MHz ANZ;
869.0 MHz RU;
Radio ransmit power max. 7 dBm (EIRP)
Range up to 50m (164 ft) outdoors
up to 40m (131 ft) indoors
(depending on terrain and building structure)
Dimensions
(Length x Width x Height)
29 x 18 x 13 mm
(1.14” x 0.71” x 0.51”)
Compliance with EU directives RoHS 2011/65/EU
RED 2014/53/EU

Brand

FIBARO

Manual

Download

FGBS-222-EN-T-Trantech
