| Power | |
| Power/Voltage: | Four AA Alkaline batteries, 1.5 VDC (1.5 VDC x 4 batteries = 6 VDC total) |
| Battery life: | Up to 5 years Upon power-up, factory test mode lasts for approximately 10 sec. |
| Voltage threshold | 3.2 V |
| Environmental Considerations | |
| Temperature: | Functional range: -10ﾟC to +49ﾟ (+14ﾟF to +120ﾟF) UL only: 0ﾟC to +49ﾟC (+32ﾟF to +120ﾟF) IP30/IK04 |
| Relative Humidity: | Up to 93% non-condensing |
| Cover and Wall Tamper Switch1: | Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface. |
| Frequency: | 433.42 MHz |
| Use: | Intended for indoor use. |
| Compatibility | |
| Receivers: | B810 wireless receiver (compatible with RFDL-11-A only) RFRC-OPT wireless receiver (compatible with RFDL-11 only) RFRC-OPT-CHI wireless receiver (compatible with RFDL-11-CHI only) |

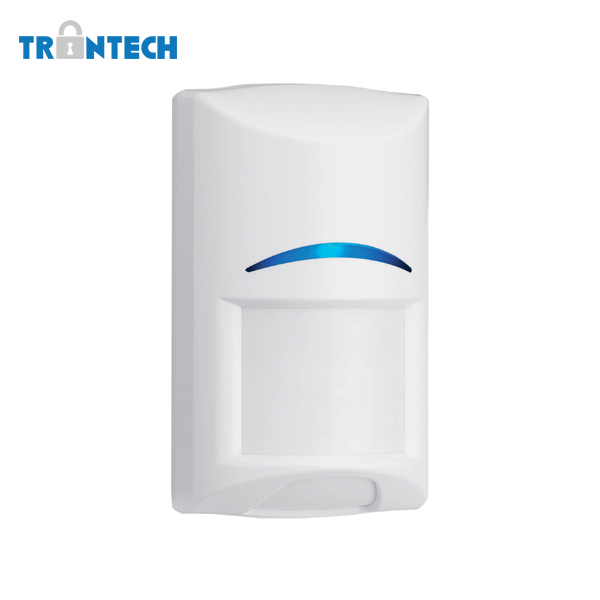

BOSCH Wireless PIR TriTech
RFDL-11
BOSCH Wireless PIR TriTech (RFDL-11) uses artificial intelligence to detect motion and provide immunity to false alarms caused by pets or animals. An integral RF transmitter reports low battery and tamper status, and sends a supervisory signal to the control panel.
Features
- 11 m x 11 m (35 ft x 35 ft) coverage
- Pet Immunity up to 45 kg (100 lb)
- Includes battery life extension feature
- Draft and insect immunity
- Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions
| Weight | 0.3 kg |
|---|---|
| Dimensions | 7 × 16 × 8.5 cm |
| Brand | BOSCH |
