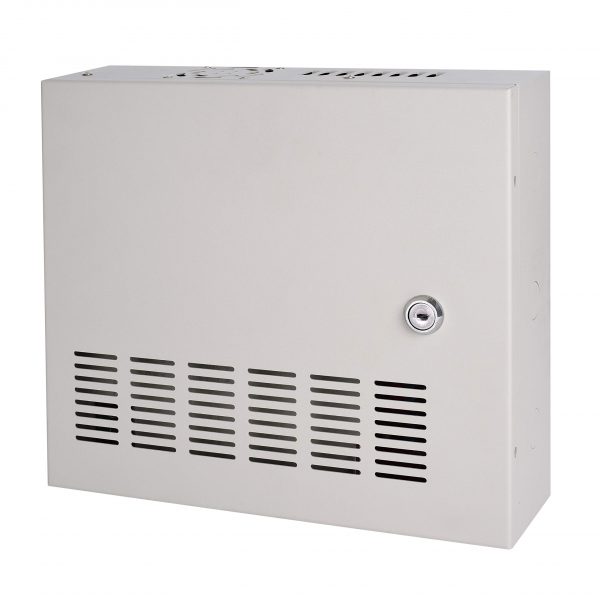

Dahua DC12V5A 9-ch CCTV Distributed Power Box


CCTV Distributed Power Supply is equipped with aesthetic, solidly made metal casing box. Power adapter output voltage is DC 12V. It allows to connect up to 9 devices. Maximal load for the one output is 2.5A, but you should remember the total load for all outputs must be lower than 5A. Each output is protected independently with glass fuse.


  • 9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
  • Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
  • High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
  • With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
  • Professional wall-mounted installation with reserved outlet holes, convenient and flexible.
Login for pricing
SKU: 496311 Category:

Electrical Specification
Model DH-PFM341-9CH
Input Voltage Range AC90~264V
Outputs 9 x 12VDC (-3%~+7%) outputs
Max. output 5 A
Output Protection 9 replacement fuses, max. per output 2.5A
Efficiency 84%
No Load Power Consumption <0.5W
Internal ON/OFF Power Switch Yes
Individual LED Output Indicator Yes
Surge Protected Line to ground: 4000V

Line to line: 2000V

ESD Contact discharge: 6000V

Air discharge: 8000V

Working Temperature -20℃~+45℃(-4~+113)
Working Humidity <90% RH
Physical Properties
Weight 0.9kg(1.98lb)
Dimension(LxWxH) 165mmx165mmx50mm(6.5”x6.5”x1.97”)
Installation Wall mount
Color White
Safety Standards
Certification CE(EN55032, EN55020)

FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6)

Weight 1.07 kg
Dimensions 17.8 × 17.8 × 6.3 cm
