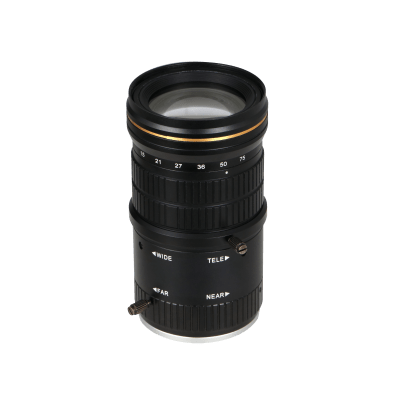

Dahua 12 MP 1/1.7” 15-75mm Vari-focal Lens

Technical Specification

Model

PFL1575-A12D

Prameter

Image Format

1/1.7”

Focal Length

15-75mm

Lens Pixel

12MP

Aperture

F1.5

Mount

C

Field Angle (D*H*V)

1/1.7”(4:3)

W: 33°(D)x26°(H)x19.2°(V)~T: 7.8°(D)x6.3°(H)x4.7°(V)

1/1.7”(17:9)

W: 30.6°(D)x26.8°(H)x13.8°(V)~T: 7.3°(D)x6.5°(H)x3.4°(V)

1/2’’

W: 28°(D)x22.2°(H)x16.5°(V)~T: 6.7°(D)x5.4°(H)x4°(V)

Lens Control

Focus

Manual

Zoom

Manual

Iris

DC-Iris

IR Correction

Yes

M.O.D.

1.5m (4.92ft)

Dimension

ɸ58mmx116mm (ɸ2.28”x4.57”)

Weight

465g (1.03lb)

Operating Temperature

-30℃~+70℃ (-22℉~+158℉)

Humidity

<90% RH

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (47 CFR Part 15 Subpart B)
