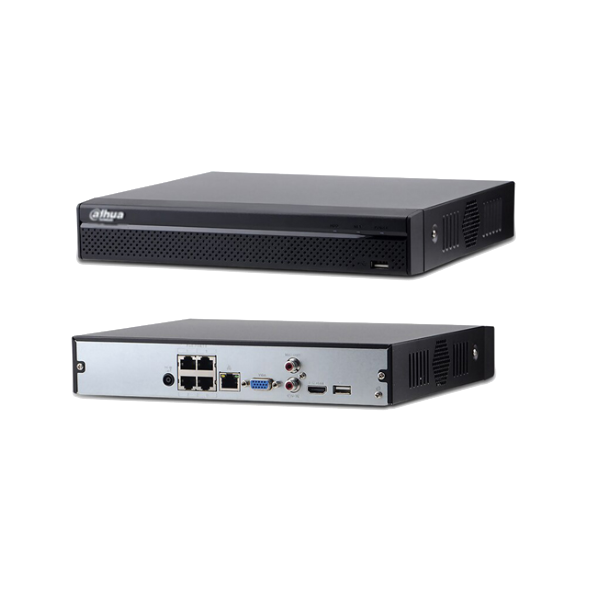

Dahua 4 Channel Compact 1U 1HDD 4PoE Network Video Recorder

NVR4104HS-P-4KS2/L

Dahua 4 Channel Compact 1U 4PoE 4K H.265 Lite Network Video Recorder (NVR4104HS-P-4KS2/L) is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.
Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF Profile S, T, G protocol, enabling interoperability with IP cameras.

Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches
Login for pricing
SKU: 120455 Category:

System
Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI
Perimeter Protection by Camera
Performance 4 channels
AI Search Search for pictures by channel, time and event type
Face Detection by Camera
Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance 4 channels
AI Search Search by target classification (human, vehicle)
Video
Access Channel 4
Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display 1 , 4 views
Third-party Camera Access ONVIF; RTSP
Compression
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback Up to 4 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart recording
Storage Local HDD; network
Backup USB storage device
Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input 1 × RCA input
Audio Output 1 × RCA output
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB 2 (1 × front USB2.0; 1 × back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE 4
General Parameter
Power Supply 48 V/53 VDC, 1.25 A/1.13 A
Power Consumption 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight 0.86 kg (1.90 lb)
Gross Weight 1.86 kg (4.10 lb)
Product Dimensions 260 mm × 232.3 mm × 50.3 mm (10.24″ × 9.14″ × 1.98″) (W × L × H)
Package Dimensions 117 mm × 373 mm × 307 mm (4.61″ × 14.69″ × 12.09″) (W × L × H)
Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 10℅~93℅
Storage Humidity 30%~85%
Operating Altitude 3000 m (9842.52 ft)
Installation Desktop mounted
Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B

Weight 1.96 kg
Dimensions 37.2 × 11.7 × 30.8 cm
Brand

Dahua

Video Output

4 CH

Datasheet

Download

NVR4104HS-P-4KS2_L_datasheet_Trantech
