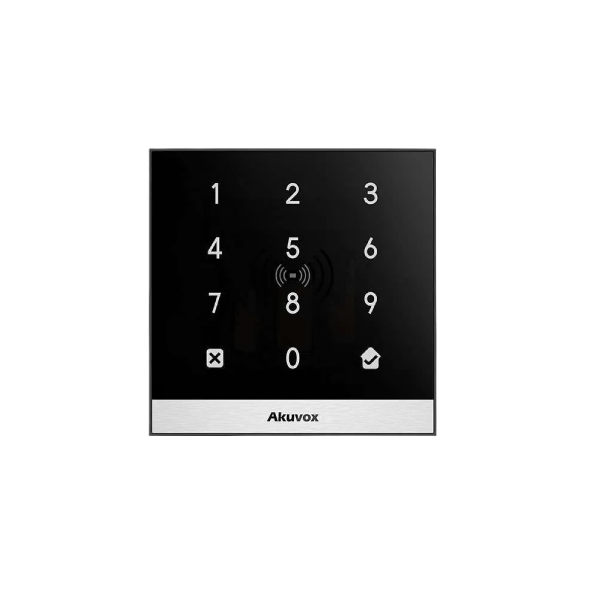

Akuvox A02 RFID Keypad Access Control Terminal

A02

Akuvox A02 RFID Keypad Access Control Terminal is an access control terminal that incorporates a RFID reader and touch keypad.It supports multiple modes of door access authentication for the users ( PIN code, NFC and RFID). And it can be easily connected to a POE using an Ethernet cable for data transmission. A02 provides you with greater security and flexibility than those traditional access control systems.

Features

Touch keypad front panel & Aluminum alloy frame
13.56MHz & 125kHz RFID card reader & NFC
20,000 card capacity &100,000 event logs
Support tamper alarm
Identification Mode:PIN,RFID Card,Two factor authentication
Water-proof & Dust-proof:IP65
Installation:Wall mount & Flush mount
802.3af Power-over-Ethernet and 12V DC connector (if not using PoE)

Physical & Power	Front panel: Touch Keypad Frame: Aluminum Alloy RFID card reader: 13.56MHz & 125kHz Relay out: 1 Inputs: 2 Wiegand: Support Speaker: 8Ω / 0.5W Tamper proof alarm: Support Ethernet port: RJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Power output: 12V 600mA IP Level: IP65 Installation: Flush-mounted or Wall-mounted Dimension: 86 x 86 x 33 (mm) Working Humidity: 10~90%,no condensing Working Temperature: -20°C ~ +55°C Storage Temperature: -30°C ~ +70°C
Capacity	User Capacity: 20,000 Card Capacity: 20,000 Event Log: 100,000
*Deployment & Maintenance*	Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs
Networking	Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature	Access schedule export/import Access level management Supports switch to reader mode Door access logs query and export Flexible scheduling and attendance management
